Data stewardship and curation practices in AI-based genomics and automated microscopy image analysis for high-throughput screening studies: promoting robust and ethical AI applications

Abstract

Background

Researchers have increasingly adopted AI and next-generation sequencing (NGS), revolutionizing genomics and high-throughput screening (HTS), and transforming our understanding of cellular processes and disease mechanisms. However, these advancements generate vast datasets requiring effective data stewardship and curation practices to maintain data integrity, privacy, and accessibility. This review consolidates existing knowledge on key aspects, including data governance, quality management, privacy measures, ownership, access control, accountability, traceability, curation frameworks, and storage systems.

Methods

We conducted a systematic literature search up to January 10, 2024, across PubMed, MEDLINE, EMBASE, Scopus, and additional scholarly platforms to examine recent advances and challenges in managing the vast and complex datasets generated by these technologies. Our search strategy employed structured keyword queries focused on four key thematic areas: data governance and management, curation frameworks, algorithmic bias and fairness, and data storage, all within the context of AI applications in genomics and microscopy. Using a realist synthesis methodology, we integrated insights from diverse frameworks to explore the multifaceted challenges associated with data stewardship in these domains. Three independent reviewers, who systematically categorized the information across critical themes, including data governance, quality management, security, privacy, ownership, and access control conducted data extraction and analysis. The study also examined specific AI considerations, such as algorithmic bias, model explainability, and the application of advanced cryptographic techniques. The review process included six stages, starting with an extensive search across multiple research databases, resulting in 273 documents. Screening based on broad criteria, titles, abstracts, and full texts followed this, narrowing the pool to 38 highly relevant citations.

Results

Our findings indicated that significant research was conducted in 2023 by highlighting the increasing recognition of robust data governance frameworks in AI-driven genomics and microscopy. While 36 articles extensively discussed data interoperability and sharing, AI-model explain ability and data augmentation remained underexplored, indicating significant gaps. The integration of diverse data types—ranging from sequencing and clinical data to proteomic and imaging data—highlighted the complexity and expansive scope of AI applications in these fields. The current challenges identified in AI-based data stewardship and curation practices are lack of infrastructure and cost optimization, ethical and privacy considerations, access control and sharing mechanisms, large scale data handling and analysis and transparent data-sharing policies and practice. Proposed solutions to address issues related to data quality, privacy, and bias management include advanced cryptographic techniques, federated learning, and blockchain technology. Robust data governance measures, such as GA4GH standards, DUO versioning, and attribute-based access control, are essential for ensuring data integrity, security, and ethical use. The study also emphasized the critical role of Data Management Plans (DMPs), meticulous metadata curation, and advanced cryptographic techniques in mitigating risks related to data security and identifiability. Despite advancements, significant challenges persisted in balancing data ownership with research accessibility, integrating heterogeneous data sources, ensuring platform interoperability, and maintaining data quality. Ongoing risks of unauthorized access and data breaches underscored the need for continuous innovation in data management practices and stricter adherence to legal and ethical standards.

Conclusions

These findings explored the current practices and challenges in data stewardship, offering a roadmap for strengthening the governance, security, and ethical use of AI in genomics and microscopy. While robust governance frameworks and ethical practices have established a foundation for data integrity and transparency, there remains an urgent need for collaborative efforts to develop interoperable platforms and transparent data-sharing policies. Additionally, evolving legal and ethical frameworks will be crucial to addressing emerging challenges posed by AI technologies. Fostering transparency, accountability, and ethical responsibility within the research community will be key to ensuring trust and driving ethically sound scientific advancements.

Introduction

Currently, advancements in high-throughput technologies, determined by Artificial Intelligence (AI) and next-generation sequencing (NGS), have changed the trends of genomic research and high-throughput screening (HTS) studies [1,2,3]. Alongside, the emergence of complex high-content screening (HCS), single-cell omics technologies and automated microscopy image acquisition and analysis, has become paramount for understanding the molecular and cellular processes and facilitating drug discovery in HTS studies [4]. These cutting-edge technologies have enabled the interoperable big datasets, spanning genomics, proteomics, microbiomics, and radiomics, thereby shedding light on intricate cellular complexities and disease mechanisms [5,6,7,8,9]. For instance, single-cell Sequencing techniques provide insights into cellular heterogeneity, while deep visual proteomics identifies disease-associated protein markers with precision and depth [2]. Genomic data, such as single-cell sequencing, enables the mapping of cell types and states, revealing cellular complexity and heterogeneity [10]. Proteomic data obtained through deep visual proteomics allows for unbiased characterization of cellular function and identification of protein markers associated with specific phenotypes and disease states [11, 12]. Furthermore, microscopy image analysis techniques, such as Cell Painting, equip high-throughput data decisive for predicting drug activity and toxicity, particularly in HTS studies [13]. These techniques also provide insightful information about cellular function, disease mechanisms, and treatment approaches, which aids in the development of novel, life-saving treatments [14,15,16]. The multidisciplinary nature of this field is demonstrated in personalized oncology and precision medicine, where the combination of various data types with in-vitro drug sensitivity and resistance tests (DSRT) informs personalized therapies [2], as well as in drug discovery, where HCS advances unbiased compound screening [17].

Despite its potential to revolutionize high-throughput screening, the sheer volume and complexity of data generated by these technologies pose a substantial challenge to data stewardship and curation, particularly in the context of AI-based genomics and automated microscope image analysis for HTS research [18,19,20,21]. Furthermore, incorporating AI-based techniques improves the analysis of HTS data, emphasizing the importance of strong data management and curation practices [22,23,24,25].

While current research efforts document various data management methodologies and technological advancements, a comprehensive understanding of the current landscape, challenges, and emerging trends in data stewardship and curation practices within this specific domain remains limited. Existing literature often focuses on individual aspects or technologies, hindering a holistic understanding of data management strategies. Hence, a systematic scoping review is reasonable to explore the existing literature, identify gaps, and provide insights to inform future research and enhance data management practices in this rapidly evolving field. Therefore, this scoping review aimed to map and synthesize existing literature on Data stewardship and curation practice in AI-based genomics and automated microscopy image analysis for high-throughput screening research in a systematic way. It seeks to identify knowledge gaps, provide a comprehensive overview, and address these gaps to guide future research courses, refine data management practices, and ultimately facilitate more effective and streamlined HTS research endeavors.

Research questions and framing frameworks

The review questions were designed to explore various dimensions of data stewardship, including data governance, quality management, privacy and security, ownership and access control, accountability and traceability, curation frameworks, interoperability, sharing practices, databases, and storage systems. By integrating multiple framing frameworks—namely MIBI (Minimum Information in Biological Imaging), MIAME (Minimum Information About a Microarray Experiment) [26], CASPE (Critical Appraisal Skills Programme for EBM), and FAIRsFAIR (FAIR data infrastructure for FAIR data) [27]—this review ensures a comprehensive investigation. These frameworks offer valuable insights into the responsible management of data in the context of AI-driven genomics and microscopy image analysis research (see Table 1).

Table 1 Research questions and analytical frameworks for scoping review on data stewardship and curation practices in AI-driven genomics and automated microscopy

Methods

Literature search strategy

A systematic article search was undertaken across four key databases: PubMed, MEDLINE, EMBASE, Scopus and other websites including google scholar, semantic Scholar and Google. These were selected based on their multidisciplinary focus spanning medicine, biotechnology, health data science and governance literature. Structured keyword search strings were built combining Medical Subject Headings terms and free text keywords clustered across four key themes: (i) Data Governance OR Data Quality and Management OR Data Security and Privacy OR Data Ownership and Access Control OR Data Accountability and Traceability AND AI AND Genomics OR High-Throughput Screening OR Automated Microscopy Image Analysis; (ii) Data Curation Frameworks and Tools OR Specific Curation Frameworks OR Curation Tools and Platforms OR Interoperability and Sharing AND AI AND Genomics OR High-Throughput Screening OR Automated Microscopy Image Analysis; (iii) Algorithmic Bias and Fairness OR Explainability and Interpretability OR Data Augmentation and Synthetic Data Generation AND AI AND Genomics OR High-Throughput Screening OR Automated Microscopy Image Analysis and (iv) Data Storage OR Databases AND AI AND Genomics OR High-Throughput Screening OR Automated Microscopy Image Analysis.

Targeted searches for each theme were executed and subsequently pooled. Results were limited to English language publications in peer-reviewed journals within the past decade. Criteria included consideration of at least one of the four themes, full-text publication, and availability of full-texts for relevance assessment. Abstracts and preprints were excluded. Identified studies were then charted and analyzed to extract relevant information aligned with defined themes. An iterative approach was employed, refining the search strategy and understanding based on emerging insights, feedback, and additional literature identified through snowballing techniques.

Rationale for realist synthesis methodology

Realist synthesis provides a suitable approach for investigating multifaceted, context-dependent topics involving complex interventions or phenomena, aligned to our multi-framework research perspective encompassing varied data stewardship technologies, policies, and practices [28]. Additionally, the integration of diverse question framing frameworks in this review like MIBI, MIAME, CASPE, and FAIRsFAIR necessitates an approach that accommodates varied perspectives and theoretical underpinnings. By adopting a realist synthesis approach, this review aims to elucidate the contextual intricacies influencing the implementation and effectiveness of these interventions.

Data extraction, classification, and analysis

Three independent reviewers (AAT, ACA, TKBT) systematically extracted relevant details from the included articles into a standardized template under the following categories: Study source & setting, research questions/objectives, study methodology, sample/data characteristics, data stewardship strategies, technological tools, limitations and key findings of each article.

Extracted information was iteratively classified across themes. Types of data analyzed or discussed were identified to understand the specific data domains investigated. Specific data stewardship challenges addressed by authors were also extracted to recognize key issues in data management. Data governance, quality management, privacy, security, ownership, access control, and accountability measures were extracted to elucidate strategies for effective data management. Furthermore, data curation frameworks, data interoperability, data sharing measures, algorithmic bias, algorithmic fairness, AI-model explainability, visualization techniques, data augmentation, and data storage systems used were identified.

The analysis and synthesis processes involved a thorough examination of included studies to identify key insights regarding research data stewardship and curation practices reported in AI-based genomics and microscopy image analysis for high-throughput screening. Constructs analyzed encompassed data management, data governance, data security, and data interoperability, alongside AI-specific considerations such as algorithmic bias and model explainability. Reviewers meticulously reviewed each study, extracting relevant data and insights related to the identified constructs. Thematic analysis was then applied to categorize extracted data into thematic groupings based on shared characteristics or concepts. Through iterative refinement and consensus-building exercises, recurring themes were identified and synthesized into a coherent narrative.

The synthesized results were presented using graphs, tables, and narrative summaries, facilitating the interpretation and dissemination of key insights and trends. This approach enabled stakeholders to derive actionable insights into data stewardship and curation practices in AI-based genomics and microscopy image analysis for high-throughput screening.

Results

Stages of the document selection process

Stage 1: Initial Search: The initial stage of the review was conducting a wide-ranging search across four electronic research databases, such as PubMed, MEDLINE, Scopus, and EMBASE. We also used websites including Google Scholar, Google, and Semantic Scholar. The search strategy was focused on identifying articles that addressed specific criteria related to data governance, data quality and management, data security, and privacy, data ownership and access control, and data accountability and traceability within the context of AI applications in genomics, high-throughput screening, or automated microscopy image analysis. A total of 273 documents were retrieved from these databases and websites, forming the initial pool of potential sources for the scoping review.

Stage 2: Number of Citations based on the Initial Broad Criteria: In the initial stage of the search process, citations were obtained based on the predefined broad criteria. The search yielded a total of 96 citations related to data governance, data quality and management, data security and privacy, data ownership and access control, and data accountability and traceability. Additionally, 82 citations were obtained for data curation frameworks and tools, interoperability, and sharing. Furthermore, 25 citations were identified for algorithmic bias and fairness, model explainability and interpretability, and data augmentation and synthetic data generation. Finally, 70 citations were retrieved for data storage and databases in the context of AI and genomics, high-throughput screening, or automated microscopy image analysis.

Stage 3: Screening Citations with Title and Abstract: The third stage involved screening the citations based on their titles and abstracts to assess their relevance to the study criteria. This process aimed at identifying citations that were potentially suitable for inclusion in the review. Following the initial retrieval of citations, subsequent stages of screening were undertaken to refine the selection and retention of relevant documents. During the screening of titles and abstracts, 28 citations were retained for data governance and stewardship, while 35 citations were deemed relevant for data curation frameworks and tools. Additionally, 13 citations were selected for AI-specific considerations, and 43 citations were identified for data storage and databases.

Stage 4: Citations after Second Full Text Screening: At this stage, the citations that passed the title and abstract screening underwent a second round of evaluation through full-text screening. This involved a detailed assessment of the full text of each document to determine its suitability for inclusion in the review. Citations were excluded if they did not meet the study criteria or if they lacked sufficient data to contribute meaningfully to the review. After the second round of screening, which involved a detailed examination of the full text of each citation, the number of retained citations was further reduced. Specifically, 8 citations remained for data governance and stewardship, 6 citations for data curation frameworks and tools, 3 citations for AI-specific considerations, and 7 citations for data storage and databases.

Stage 5: Inclusion of Citations from additional website: Lastly, additional citations were identified through snowballing approaches and direct searching of titles on external platforms. This process yielded 3 citations for data governance and stewardship, 4 citations for data curation frameworks and tools, 2 citations for AI-specific considerations, and 5 citations for data storage and databases.

Stage 6: Citations contribute to the synthesis: Overall, a total of 38 citations were included of which 11 citations were for data governance and stewardship, 10 citations for data curation frameworks and tools, 5 citations for AI-specific considerations, and 12 citations for data storage and databases, contributing to a comprehensive synthesis of evidence in the systematic review (See Fig. 1).

Fig. 1

Flow diagram of the search process and article selection in the scoping review

Number of publications by year

The patterns of publications published throughout the years illustrate the different levels of research outputs. There was just one publication each in the years 1999, 2004, 2005, and 2006. A considerable rise in recent research efforts was indicated by the high number of publications recorded in 2021 and the noticeable spike of three and seven publications in 2023 (See Fig. 2).

Fig. 2

Annual distribution of publications included in the scoping review

Distribution of publications by data stewardship dimension

The analysis demonstrated varying coverage across the various research data stewardship components, identifying areas of strength and possible gaps: Around 36 articles discussed about data interoperability and sharing measures, and data curation frameworks were reported in 34 articles. Data governance measures, data quality and management measures, and data storage systems were addressed in 32 articles. In contrast, data privacy and security measures and data accountability and traceability measures were discussed in 28 articles. Model explainability and data augmentation or synthetic data management have been addressed in a few studies and require serious attention (See Fig. 3).

Fig. 3

Distribution of articles addressing data stewardship and curation practices across different dimensions

Datasets and research scope in genomics and microscopy analysis

Researchers have analyzed a wide range of datasets in genomics and microscopy. Schatz et al [29] addressed a wide range of sequencing data, including human genomes, microbiomes, and metagenomes, meanwhile Fadlelmola et al [30] focused on genomic and phenotypic data. Clinical and health data was examined by Wright et al [31] from patients with rare diseases, Thorvaldsdóttir et al [32] from breast cancer patients, and Edward et al from Alzheimer's disease patients, with Rehm et al studying patients with genetic disorders. Ahmed Z. et al investigated proteome and mass spectrometry data from human saliva samples, whereas Stocker, Fischer et al and Ma et al examined experimental and analytical data from yeast and bacterial cells, respectively. Barsh GS. et al and Shabani M investigated legal, ethical, and social data, whereas Tavani and Reddick et al looked at demographic and geographical data. Goldberg et al and Huttenhower et al used imaging and quantitative data to do high-content screening of mouse embryos and image analysis of human microbiomes. Additionally, Saunders R. et al [33] documented experimental protocols and laboratory data to facilitate scientific reproducibility, while Jin et al [34] investigated the governance of blockchain and decentralized data in genomics research (See Fig. 4).

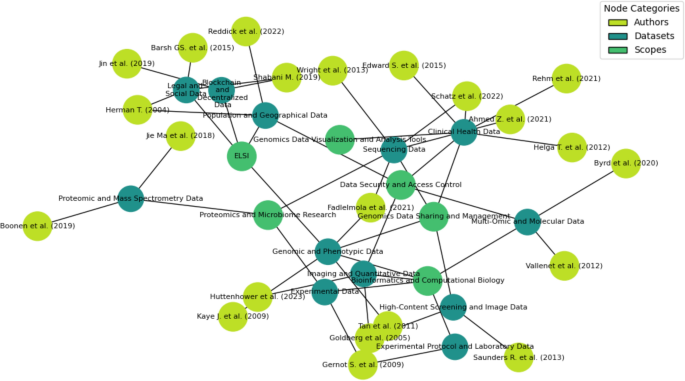

Fig. 4

Network analysis of authors, datasets, and research scopes in ai-based genomics and automated microscopy

Specific challenges addressed in each article

In addition, our study suggests that the most significant challenges of AI-based data stewardship are lack of infrastructure and cost optimization, ethical and privacy considerations, access control mechanisms, and transparent data-sharing policies. To tackle issues such as data quality, privacy and bias management, advanced cryptographic techniques, federated learning or blockchain technology were suggested. We further discovered that rigorous data governance requirements including standards from GA4GH standards[29], DUO versioning, and attribute-based access control [35], were necessary to maintain integrity of the study data while also ensuring security and ethical use. Data Management Plans (DMPs) [30], extensive metadata curation, and the use of robust cryptographic methodology were identified as critical in addressing data security and identifiability risks.

Schatz et al emphasize the importance of optimizing infrastructure and reducing costs by highlighting the redundancies and inefficiencies in traditional genomics analysis. The complexities of data collection and standardization are highlighted by Fadlelmola et al, especially in African research communities with language differences and sensitive data. The authors Thorvaldsdóttir, H., et al [36] highlight the significance of efficient data management and visualization, especially when dealing with the extensive datasets that are inherent in genomics research. Stocker, Fischer, et al delve into the challenges of managing heterogeneous data and integrating analysis tools into existing systems. Ethical and privacy considerations emerge prominently, with Wright et al, Reddick et al, and Tavani, discussing the need for culturally sensitive approaches, informed consent, and secure data sharing. Access control and sharing mechanisms are scrutinized by Reddick et al, who emphasize the importance of fine-grained access control and addressing the complexity of sharing large datasets (See Fig. 5).

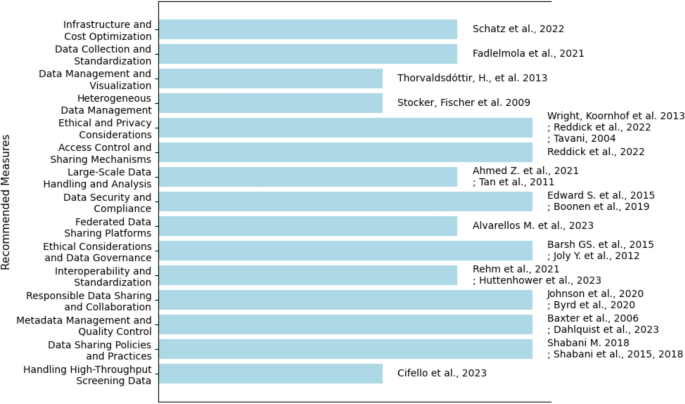

Fig. 5

Key measures reported across various dimensions of data stewardship

Data stewardship components: governance measures

Robust data governance procedures are needed in the fields of AI-based genomics and automated microscopy image processing for high-throughput screening research to guarantee data integrity, security, and ethical use. Several authors have contributed insights into key data governance measures, reflecting the diverse range of challenges and considerations innate in managing large-scale datasets in these domains. Schatz et al emphasize standards like GA4GH DUO, versioning, and lineage tracking to maintain data integrity and trace data origins. They also advocate for coding data use terms and involving DACs to promote standardized and responsible data usage practices, fostering collaboration and transparency. Similarly, Fadlelmola et al stress the importance of versioning, lineage tracking, and ethical data-sharing practices. They address ethical challenges in AI-based research, including biases, fairness, and privacy concerns, and propose access control measures to mitigate biases and promote transparency and fairness. Reddick et al advocate for robust security measures and privacy frameworks, such as attribute-based access control, to safeguard data privacy and mitigate bias risks. Wright et al highlight the significance of genomic data governance, including standards compliance, confidentiality measures, and data access agreements (See details in Table 2).

Table 2 Data governance measures in AI-based genomics and automated microscopy image analysis for high-throughput screening studies

Data quality management practices

The authors examined several aspects of data quality and management across multiple research disciplines, providing insights into how to address relevant difficulties. Schatz et al and Fadlelmola et al emphasize the importance of Data Management Plans (DMPs) in guiding data collection, metadata curation, and data lifecycle management. Stocker, Fischer, et al, and Fadlelmola et al also mentioned the significance of well-curated metadata for understanding and contextualizing heterogeneous data. Furthermore, Wright et al mentioned measures to safeguard sensitive information and reduce the risk of unauthorized access. Reddick et al recommended attribute-based access control models to regulate data sharing and ensure fine-grained control over access. Dahlquist et al and Huttenhower et al discuss the need for clear and transparent data governance frameworks to maintain data integrity and transparency. Shabani M explores the potential of blockchain platforms to enhance data security and ownership. Baker et al emphasizes the importance of data curation processes, including compliance with standards, metadata provision, and version control, to maintain data quality. Ma et al highlights the importance of robust infrastructure for efficient data storage, processing, and accessibility. Johnson et al underscores the need to address ethical and legal considerations, ensuring compliance with regulations and safeguarding participant privacy. Finally, Baxter et al address systematic evaluation methods to assess data quality, ensuring accuracy and relevance (See Fig. 6).

Fig. 6

Heatmap of key measures in data management practices for ai-driven genomics and automated microscopy in high-throughput screening studies

Data security and privacy measures

The authors thoroughly investigate different data security and privacy techniques, critical for protecting sensitive information in AI-based genomics and automated microscopy image processing for high-throughput screening studies. Schatz et al explain the importance of robust data security and privacy measures such as data encryption, logging, auditing, intrusion detection, and access controls in reducing risks and safeguarding data authenticity. Other authors, Fadlelmola et al, have discussed data protection rules and responsible data-sharing practices. They argue that data should be restricted, outline data ownership rights, and examine licensing and copyright issues. Authors, Fadlelmola et al reported on data protection rules and responsible data-sharing practices, they argue that data should be restricted, outlining data ownership rights, and examining licensing and copyright issues. Reddick et al advocate for strong data protection and confidentiality requirements, including material transfer agreements, anonymization mechanisms, and data access agreements. Andreas D. et al highlighted the importance of establishing attribute-based access control systems and creating clear guidelines for securely exchanging sensitive data. In Tavani's work, there is a discussion on robust authorization and authentication systems (AAS) to effectively regulate data access, while Edward S. et al address the challenges and risks associated with sharing individual-level genomics data and advocate for stringent security measures to protect privacy. Ahmed Z. et al promote transparent practices and open discussions with cloud service providers to ensure data security and confidentiality in genomic cloud computing environments. Joly Y. et al focus on controlled access mechanisms to balance open access with privacy concerns in genomic data sharing initiatives, while Rehm et al propose a Tiered access system with privacy safeguards for secure and controlled access to sensitive genomic data. Goldberg et al explore advanced cryptographic techniques such as homomorphic cryptography and secure multi-party computation to protect genomic data privacy, and Boonen et al adaptable data management systems and standardized data models in proteomics data sharing initiatives. Lastly, Baker et al highlight stringent security measures to safeguard sensitive genomic and proteomic data, emphasizing robust security protocols and access controls to mitigate security risks and protect sensitive information (See details in Table 3).

Table 3 Data privacy and security measures in AI-based genomics and automated microscopy image analysis for high-throughput screening studies

Data ownership and access control measures

A significant challenge identified in the literature is achieving a balance between protecting data ownership—whether held by individuals, institutions, or AI models—and ensuring accessibility for research and development. Schatz et al emphasize the importance of role-based access control (RBAC) and data-sharing agreements as mechanisms to facilitate controlled access while safeguarding the ownership rights of data contributors. They further highlight the effectiveness of RBAC, Access Control Lists (ACLs), and encryption as critical tools for managing access control within data governance frameworks. Traditional methodologies such as RBAC are being supplemented by more innovative approaches, including blockchain technology, which offers decentralized and secure mechanisms for data access management. Shabani explored the potential of blockchain-based platforms to provide a decentralized approach to access control, offering a flexible and secure alternative to conventional methods. Similarly, Johnson et al advocate for controlled-access models that secure data integrity and facilitate its beneficial utilization in research.

Cifello et al propose a practical framework wherein original data submitters retain ownership, while access is regulated by the National Institutes of Health (NIH), effectively harmonizing ownership with the need for accessibility. In addition to this subtle balance, the literature strongly emphasizes strict adherence to legal and ethical standards, given the sensitive nature of genomic data. Furthermore, compliance with federal regulations, such as the Federal Information Security Management Act (FISMA) and the National Institute of Standards and Technology (NIST) guidelines is crucial to maintaining the integrity and security of data governance frameworks. Material transfer agreements (MTAs) play a pivotal role in ensuring legal compliance during the transfer of genetic samples, thereby safeguarding ownership rights and addressing ethical considerations. Tan et al reported the advantages of automated permission systems, which streamline the access control process and ensure that only authorized entities can engage with sensitive data, reinforcing the integrity of data governance. Finally, the safeguarding of data privacy and security emerges as a key concern, particularly in relation to sensitive genomic data. Various methods, such as encryption, de-identification, and access auditing, are employed to fortify data protection, underscoring the paramount importance of these measures in contexts like AI-based genomics and microscopy image analysis. Schatz et al emphasized the critical role of encryption and data masking techniques in securing data at multiple levels, thereby mitigating the risks associated with unauthorized access. Connor et al discussed the strategic implementation of de-identification measures as a crucial approach to protecting individual privacy while enabling the use of data for research purposes. Byrd et al further underscored the significance of controlled-access repositories in enhancing the security of data-sharing practices, ensuring that sensitive data remains safeguarded throughout the research continuum and that privacy concerns are adequately addressed (See Fig. 7).

Fig. 7

Bipartite network graph of data ownership and access control measures in ai-based genomics and automated microscopy for high-throughput screening studies

Data accountability and traceability measures

Current research on data accountability and traceability in AI-driven genomics and automated microscopy image analysis, particularly within high-throughput screening studies, underscores the imperative for robust governance practices to ensure data integrity, transparency, and compliance. Schatz et al propose an inverted data-sharing model supported by centralized services to improve data ownership and access control, highlighting the necessity for a systematic approach to data governance. Fadlelmola et al emphasize the importance of comprehensive data protection policies and responsible data-sharing practices, particularly in tracking data provenance to maintain transparency and accountability throughout the data lifecycle. Jensen et al stress the need for rigorous accountability and traceability within the Genomic Data Commons (GDC) framework, focusing on controlling access to raw patient sequence data and utilizing the NIH eRA Commons system to enhance traceability.

This perspective aligns with the findings of Jeffrey C. et al, who advocate for meticulous documentation of data management processes, standardized formats, and organized file hierarchies to clarify access control and data ownership. Similarly, Edward S. et al highlight the necessity of transparent practices and thorough documentation to ensure accountability in data ownership and access control mechanisms. Alvarellos M. et al further argue for the establishment of governance bodies to monitor data provenance and lineage, thereby enhancing auditability and ensuring compliance with regulatory standards. Baker et al support this by emphasizing adherence to standards documentation and version control as critical components of data oversight. The complexities surrounding informed consent in data sharing and research collaboration, as discussed by Kaye J. et al, further illustrate the challenges of ensuring data accountability and traceability in research contexts. As a potential solution, Shabani M investigates the application of blockchain technology to enhance transparency and efficiency in data accountability, including the use of smart contracts for compliance and auditability. Jin et al expand on this by highlighting blockchain's role in improving data ownership and access control through immutable tracking of data transactions. Baxter et al underscore the significance of capturing metadata to trace data lineage and provenance, supported by standardized nomenclature and rigorous quality control measures. Johnson et al advocate for data protection policies and controlled-access models, reinforced by clear terms of agreement to ensure authorized access. Finally, Huttenhower et al conclude by emphasizing the necessity for clear and transparent rules governing accountability and traceability, particularly in tracking data provenance and managing versioning to strengthen data governance frameworks (See details in Table 4).

Table 4 Data accountability and traceability measures in AI-based genomics and automated microscopy image analysis for high-throughput screening studies

Data curation frameworks and models

Several authors have explored different data curation frameworks that can be used to manage, analyze, and curate genomic and biological data. These frameworks provide researchers with tools for data storage, sharing, and analysis in various research contexts. In a study by Schatz et al the Gen3 AnVIL framework was highlighted as it offers comprehensive data management solutions for genomics research. Fadlelmola et al emphasized the importance of Data Management Plans (DMPs) and related tools in ensuring effective data curation practices. Another study by Thorvaldsdóttir, H., et al focused on the Goby and Integrative Genomics Viewer (IGV) frameworks, which provide functionalities for interactive graphing and data visualization in genomics. Additionally, Stocker, Fischer et al introduced the iLAP framework, specifically designed for laboratory data management, analysis, and protocol development to cater to the unique requirements of experimental settings. Reddick et al proposed an attribute-based access control framework tailored for managing access to genomics data, ensuring data security and privacy. Andreas D. et al discussed SeqBench integrated with an Authorization and Authentication System (AAS) for streamlined data management and access control in sequencing experiments. Tan et al introduced the biology-Related Information Storage Kit (BRISK) framework, focusing on efficient data storage and retrieval in biological research. Jensen et al highlighted the Genomic Data Commons (GDC) framework, emphasizing centralized data management and controlled access to genomic data resources. Jeffrey C. et al discussed the Harmonization and Integration Pipeline for Functional Genomics (hipFG), offering solutions for harmonizing heterogeneous genomic datasets for integrative analysis. Ahmed Z. et al introduced the Java-based Whole Genome/Exome Sequence Data Processing Pipeline (JWES), offering efficient processing and analysis of high-throughput sequencing data. Alvarellos M. et al emphasized federated data platforms and governance mechanisms for collaborative genomics research initiatives. Schatz et al advocate for the adoption of the GA4GH DRS standard and cloud-agnostic access to facilitate seamless data exchange. Fadlelmola et al emphasize the establishment of formalized genomic data archives and responsible sharing practices within consortia like the H3Africa consortium. Stocker, Fischer et al focus on the development of the iLAP system for lab data management and its integration with repositories and LIMS for enhanced interoperability. Other authors, such as Wright et al, underscore the importance of clear data sharing policies and the establishment of data access committees to ensure responsible data sharing practices. Reddick et al propose an Attribute-Based Access Control (ABAC) model to address challenges in sharing large datasets while maintaining security. Tan et al highlights the development of the BRISK framework for data integration and collaboration in genetics research, including the implementation of automated permissions systems (See Fig. 8).

Fig. 8

Sunburst plot of data curation frameworks reported in ai-based genomics and automated microscopy for high-throughput screening studies

Interoperability and data sharing practice

Research findings highlight a diverse array of frameworks and initiatives aimed at improving interoperability and data sharing in genomics and biological research. Key strategies include adopting standards such as the GA4GH Data Repository Service (DRS), developing secure access control models like Attribute-Based Access Control (ABAC), and implementing federated data platforms that foster collaborative research.

For instance, Schatz et al describe the Gen3 AnVIL framework, a robust data management platform tailored to genomics. Its integration with the GA4GH DRS standard, support for Dockstore, and cloud-agnostic access significantly enhance interoperability across various cloud platforms, facilitating seamless data sharing and integration. Similarly, Stocker, Fischer et al present the iLAP system, a laboratory information management system (LIMS) designed to streamline data management, analysis, and protocol development. By integrating with various repositories and other LIMS, iLAP boosts interoperability and ensures efficient management and sharing of experimental data. Alvarellos M. et al emphasize the critical role of federated data platforms that align with initiatives like GA4GH and GO FAIR, advocating for the adoption of FAIR (Findable, Accessible, Interoperable, Reusable) principles. These standards enhance secure collaboration among researchers from different institutions.

Furthermore, Reddick et al propose an Attribute-Based Access Control (ABAC) model to manage access to large genomic datasets. This model addresses data security challenges by customizing access controls based on user attributes, ensuring that only authorized individuals can access sensitive genomic information. In addition, Andreas D. et al discuss SeqBench, which integrates an Authorization and Authentication System (AAS) to bolster data management and access control in sequencing experiments. Tan et al introduce the biology-related Information Storage Kit (BRISK) framework, which prioritizes efficient data storage and retrieval in biological research. Its automated permissions systems streamline access control, ensuring that only authorized entities can access sensitive information, a vital aspect in collaborative research environments. In a similar vein, Rehm et al advocate for the adoption of GA4GH standards and cloud-based workflows to enhance data sharing and analysis in genomics research. While cloud solutions improve scalability and accessibility. Lastly, Wright, Koornhof, et al underscore the necessity for clear data-sharing policies and oversight committees to ensure responsible and ethical data sharing, particularly concerning sensitive genomic information. By implementing formalized policies and oversight mechanisms, researchers can ensure that data sharing practices align with legal and ethical standards, while also promoting transparency and accountability (See details in Table 5).

Table 5 Interoperability and data sharing measures in AI-based genomics and automated microscopy image analysis for high-throughput screening studies

Databases, storage systems, and visualization tools

The research findings indicate that a variety of databases and storage systems are utilized for the management, storage, and dissemination of genomic and biological data. Notably, repositories such as the NCBI Sequence Read Archive (SRA), the EMBL-EBI European Nucleotide Archive, and the DNA Data Bank of Japan (DDBJ) play essential roles in the preservation of raw sequencing data. Concurrently, databases like the NCBI Database of Genotypes and Phenotypes (dbGaP) facilitate the integration and sharing of genomic and phenotypic information. Additionally, systems such as the Integrated Rule-Oriented Data System (iRODS) and the Automated Attribute-Based Access Control (AABAC) model tackle the complexities associated with large-scale data management and access control, thereby ensuring secure and responsible data sharing practices.

In conjunction with these data management systems, visualization tools, including the Integrative Genomics Viewer (IGV) and laboratory data management systems like the iLAP system significantly enhance the ability of researchers to analyze and manage data effectively. Specifically, IGV is extensively employed for visualizing and analyzing various genomic data types, integrating metadata with genomic information to support comprehensive data interpretation and exploration. As a result, IGV enhances research insights and supports the discovery of novel genetic relationships. Similarly, the iLAP system, as described by Stocker, Fischer et al, is designed for laboratory data management, analysis, and protocol development. This system seamlessly integrates with repositories and Laboratory Information Management Systems (LIMS), effectively bridging the gap between experimental data generation and storage.

Moreover, specialized platforms such as SeqBench and the Genomic Data Commons (GDC) offer customized solutions for sequencing data management and controlled data access. For instance, SeqBench, introduced by Dander et al and David W. et al, provides tools for processing and analyzing high-throughput sequencing data, which is vital for advancing research in genomics and personalized medicine. In parallel, Cifello et al highlight the GDC's role as a centralized platform for genomic data management, supporting controlled access to genomic data resources (See Fig. 9).

Fig. 9

overview of databases, storage systems, and visualization tools in ai-based genomics and automated microscopy for high-throughput screening studies

Discussion

The review consolidated findings related to data stewardship and curation within the context of AI-driven technology and research, targeting researchers, policymakers, and relevant stakeholders. Its objective was to elucidate the theoretical foundations, practical implications, and obstacles associated with data management in the fields of genomics, proteomics, microbiome research, and AI technologies. Among the principal elements highlighted were data governance, quality assurance, privacy and security protocols, ownership rights, access management, accountability, traceability, curation methodologies, and database/storage infrastructures.

The results of this review highlight the diverse array of data types essential for AI-driven genomics and microscopy image analysis in high-throughput screening research. These data types, which encompass sequencing data, high-content screening, and image data, are foundational to advancements in the field. For instance, genomic data, such as single-cell sequencing data, provides insights into cellular complexity and heterogeneity, facilitating precise mapping of cell types and states [10]. Similarly, proteomic data derived from deep visual proteomics techniques allows for an unbiased characterization of cellular functions and the identification of disease-associated protein markers [11]. Similarly, proteomic data derived from deep visual proteomics techniques allows for an unbiased characterization of cellular functions and the identification of disease-associated protein markers [12]. Furthermore, microbiome data, which includes profiles associated with systemic and tumor microenvironments, plays a significant role in influencing cancer development and treatment responses, with AI-driven computational pathology systems offering valuable insights for clinical decision-making [21]. The integration of these varied data types enhances our understanding of cellular functions, disease mechanisms, and treatment strategies, underscoring the critical role of data-driven methodologies in high-throughput screening research.

The challenges identified in this review closely align with those noted in existing literature within the field [38, 39]. Various authors have pointed out common obstacles in data stewardship, such as effective data management, ensuring data quality, addressing privacy and security concerns, and tackling issues of bias and fairness. Additionally, challenges related to the interpretability and explainability of AI systems, as well as the acquisition of technical expertise, have emerged as recurring themes. The necessity of integrating, comparing, and visualizing large, multi-dimensional datasets from diverse sources has been emphasized as vital for unlocking the potential of AI across various research domains [40]. Recommendations for addressing these challenges include strategies focused on data quality, volume, privacy, security, bias, interpretability, explainability, and technical expertise [41]. Moreover, EU researchers face specific challenges in reconciling data protection requirements and AI research, particularly concerning the processing of large-scale databases containing personal data. Responsible data integration in machine learning pipelines necessitates concerted efforts to address concerns about data quality and bias, leading to the development of techniques and methods that optimize the principles of responsible data science in data integration tasks. Overall, the convergence of findings from this review and existing literature emphasizes the multifaceted nature of challenges in data stewardship within AI-driven research contexts, highlighting the need for comprehensive and nuanced approaches to address these complexities.

The review identified a comprehensive set of data privacy and security measures employed in AI-driven genomics and microscopy image analysis, which align with strategies proposed in the literature. These measures include data encryption, responsible data sharing practices, and authentication systems with defined user roles were commonly observed. Authors also emphasized the importance of open discussions with cloud service providers and compliance with industry-recognized data protection frameworks to ensure data security and confidentiality, particularly in genomic cloud computing.

Furthermore, the review highlighted the significance of federated learning strategies and adherence to data governance principles as essential for balancing open access with privacy concerns. Advanced cryptographic techniques, such as homomorphic cryptography and secure multi-party computation, were proposed as innovative solutions to safeguard sensitive genomic data. In the field of genomics, mechanisms like differential privacy were suggested as a means to share aggregated statistical information while preserving privacy, thereby addressing vulnerabilities to inference attacks [42, 43]. Similarly, in the domain of microscopy image analysis, federated learning algorithms, such as FedTransfer, were introduced to enhance model generalization while ensuring privacy and security [44]. Additionally, data sharing strategies based on style transfer were proposed to mitigate performance penalties caused by data distribution differences among users [45, 46]. These approaches collectively aim to provide privacy guarantees, protect individual participants, and facilitate collaborative research in a distributed and secure manner.

The review findings regarding data ownership and access control measures resonate with existing literature, highlighting the importance of robust frameworks for safeguarding sensitive genomic data. Commonly reported measures, such as user authentication, role-based access control (RBAC), and encryption, are consistent with strategies discussed in prior studies. For instance, Reddick et al [35] emphasized the significance of RBAC in controlling access to genomic data, particularly in research settings where multiple users may require varying levels of access.

Similarly, the use of data sharing agreements, access control lists (ACLs), and data access auditing reflects a collective emphasis on regulating data access and ensuring compliance with federal regulations. Rosa et al [47] explored the role of data sharing agreements in delineating responsibilities and permissions among collaborators, ensuring transparent data sharing practices. Meanwhile, Dyke [48] highlighted the importance of comprehensive data access auditing mechanisms to monitor and track data access activities, enabling accountability and compliance with regulatory requirements. However, while our review focuses on automated attribute-based access control (AABAC) models and extensions of the XACML framework, other studies may have explored alternative approaches or emphasized different aspects of access control. Federated data platforms and blockchain technology have been explored to enhance data security and traceability in genomic research settings. Federated data platforms, such as those discussed by Alvarellos et al. [49] and Dervishi et al. [50] enable secure data sharing without physically moving the data, allowing for global collaboration and representation of diverse populations. On the other hand, blockchain-based frameworks like PGxChain, proposed by Albalwy et al. utilize smart contracts to ensure secure and equitable access to genomic data, addressing privacy concerns and enabling interoperability between multiple healthcare providers [51]. Additionally, Visscher et al. [52] and Manzoor et al. [53] propose decentralized and privacy-preserving systems that combine homomorphic encryption, zero-knowledge proofs, and blockchain to protect sensitive genetic data and enable verifiability. These approaches offer potential solutions to the challenges of data security and privacy in genomic research, facilitating data sharing and analysis while maintaining confidentiality and trust. Furthermore, variations may arise in the implementation of data access policy models, such as open access, controlled access, and registered access, depending on institutional requirements and regulatory frameworks.

Conclusions

This study highlights the progress and ongoing challenges in data stewardship within AI-driven genomics and automated microscopy image analysis. Key advancements include the adoption of standards like GA4GH DUO and effective versioning practices, which have improved data integrity and lineage tracking. Ethical data-sharing practices—focused on addressing bias, fairness, and privacy—are supported by technologies such as role-based access control (RBAC) and blockchain. However, challenges persist, particularly in integrating diverse data sources, ensuring interoperability across platforms, and maintaining high data quality. Balancing data ownership with the need for accessible research, especially in genomics, remains a significant issue, further complicated by complex legal and ethical considerations.

Data curation frameworks like Gen3 AnVIL, iLAP, and advanced metadata techniques are essential for managing genomic data, but interoperability and data quality issues still pose hurdles. In terms of security, cryptographic methods like homomorphic encryption and federated learning protect privacy in collaborative research, though concerns over unauthorized access and data breaches persist. The use of attribute-based access control (ABAC) and automated permission systems streamlines collaboration, yet complexities in data-sharing agreements and material transfer agreements (MTAs) remain challenging. Adherence to regulations like HIPAA is crucial for maintaining both data accessibility and privacy. Blockchain enhances data accountability and traceability, but ensuring transparency and ethical compliance, particularly in areas like informed consent and data provenance, continues to require careful management.

Limitations and implications of the study

Although this review offers important insights into data stewardship and curation practices in AI-driven genomics and microscopy, there are several limitations. The search was limited to articles published up to January 2024, potentially missing the latest developments. Additionally, the focus on English-language studies and the exclusion of grey literature may introduce biases. The reliance on database searches may also have overlooked relevant research from other sources. Finally, despite efforts to ensure rigor, the subjective nature of data extraction and synthesis may introduce some bias into the findings.

Despite these limitations, the findings of this study have important implications for both researchers and policymakers. First, it underlines the need for continuous innovation in data stewardship, particularly in developing more advanced curation tools and access control mechanisms to manage the huge nature of data. Second, the study points out that while existing legal and ethical frameworks provide a foundation for data governance, these frameworks must evolve to address new challenges introduced by AI technologies. Policymakers and researchers must collaborate to create governance models that are both effective and adaptable to the rapidly changing landscape of AI-driven research. Lastly, the study underscores the importance of fostering transparency, accountability, and ethical responsibility in research practices to build trust in AI applications. This will be critical for advancing ethically sound and scientifically robust innovations in genomics and microscopy.
